CUPLOCK SYSTEM

The CUPLOCK system is either a painted, or a fully galvanized, multi-purpose steel system scaffold for general access, shoring and supporting vertical loads.

CUPLOCK is distinguished by its unique node point, which allows up to four components to be connected in one fastening action.

CUPLOCK is ideal for a wide range of applications including continuous façade, circular scaffold, birdcage access and staircase access.  It is often used for renovation scaffolding, façade scaffolding, masonry scaffolding, support or staircase towers, as well as being used in more specialised applications, such as shipbuilding.

The following is a listing of the different components of the CUPLOCK system that are manufactured by Orient.

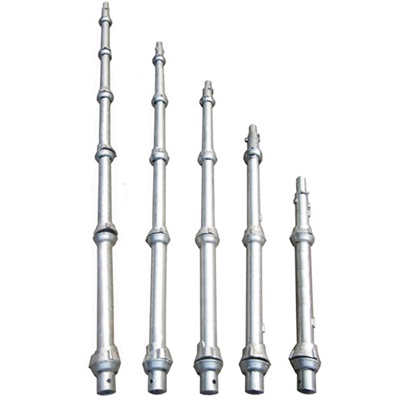

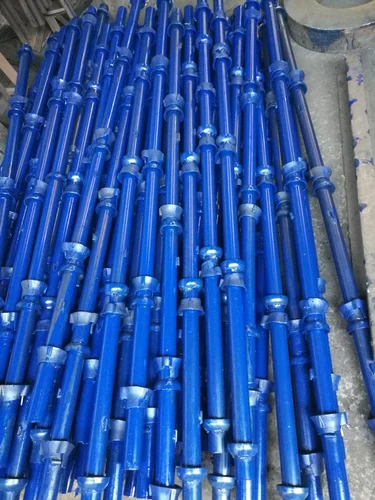

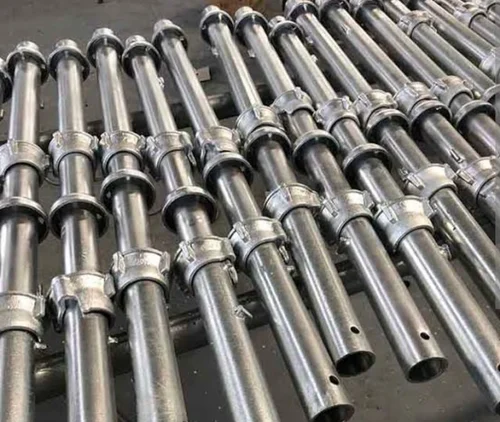

CUPLOK STANDARDS

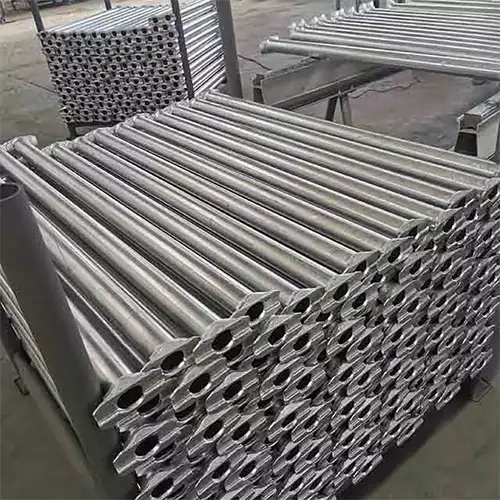

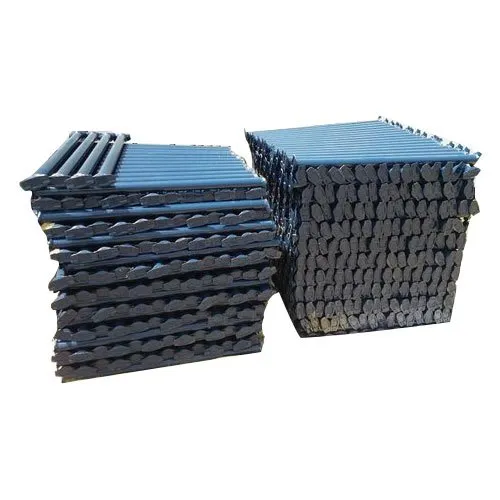

CUPLOK LEDGERS

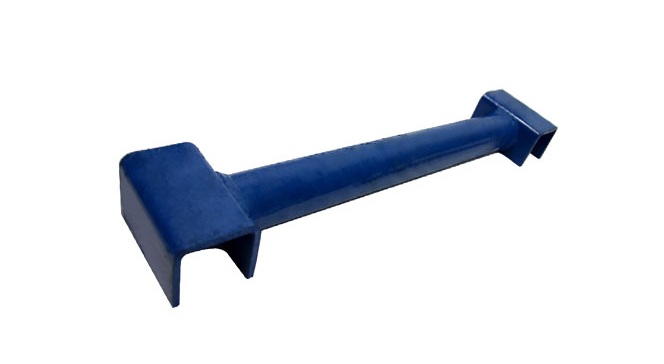

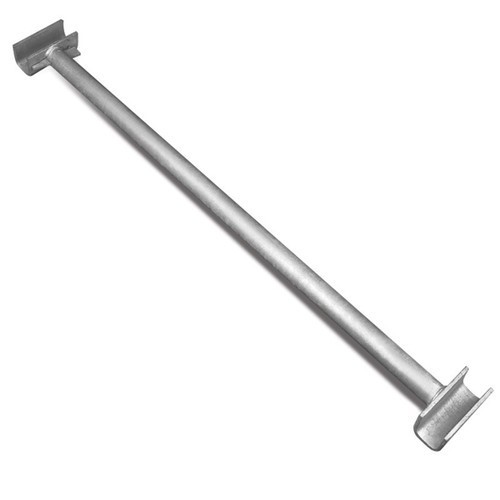

CUPLOK INTERMEDIATE TRANSOMS

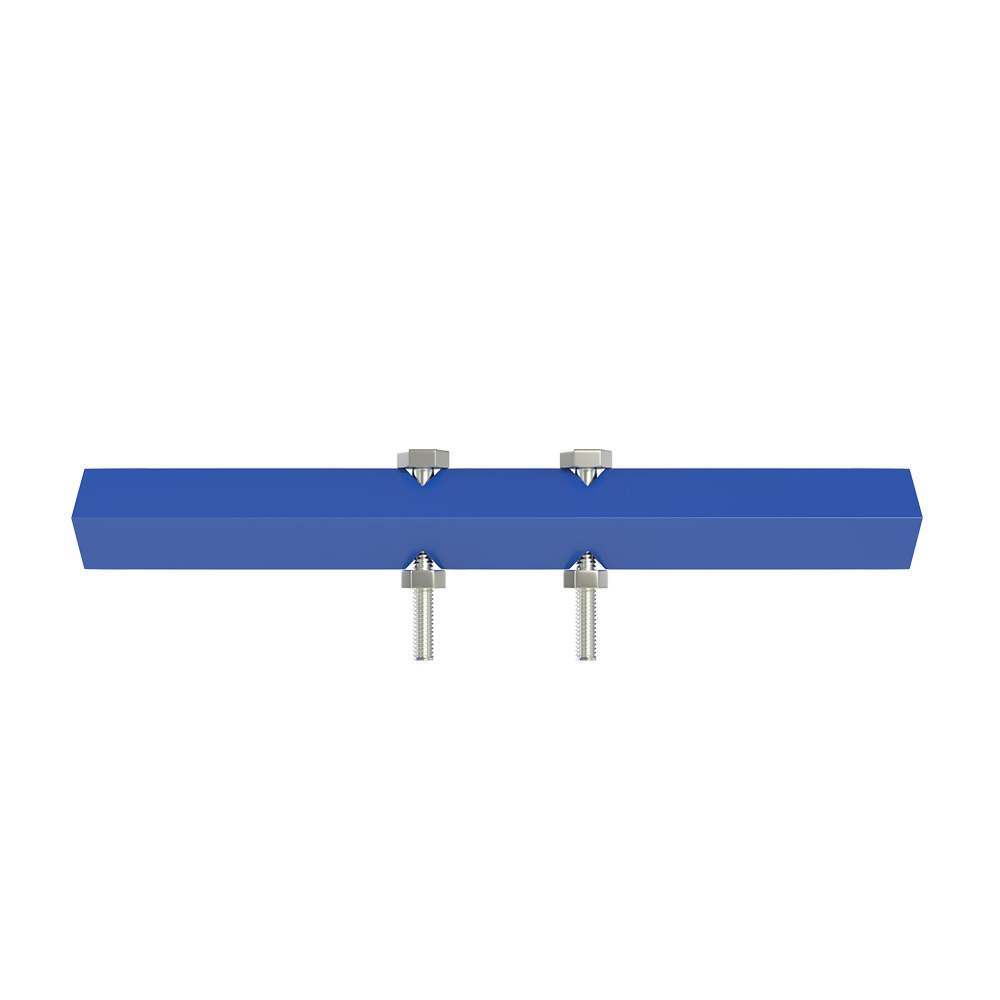

CUPLOK SPIGOT PIN CONNECTORS
U-HEAD JACKS

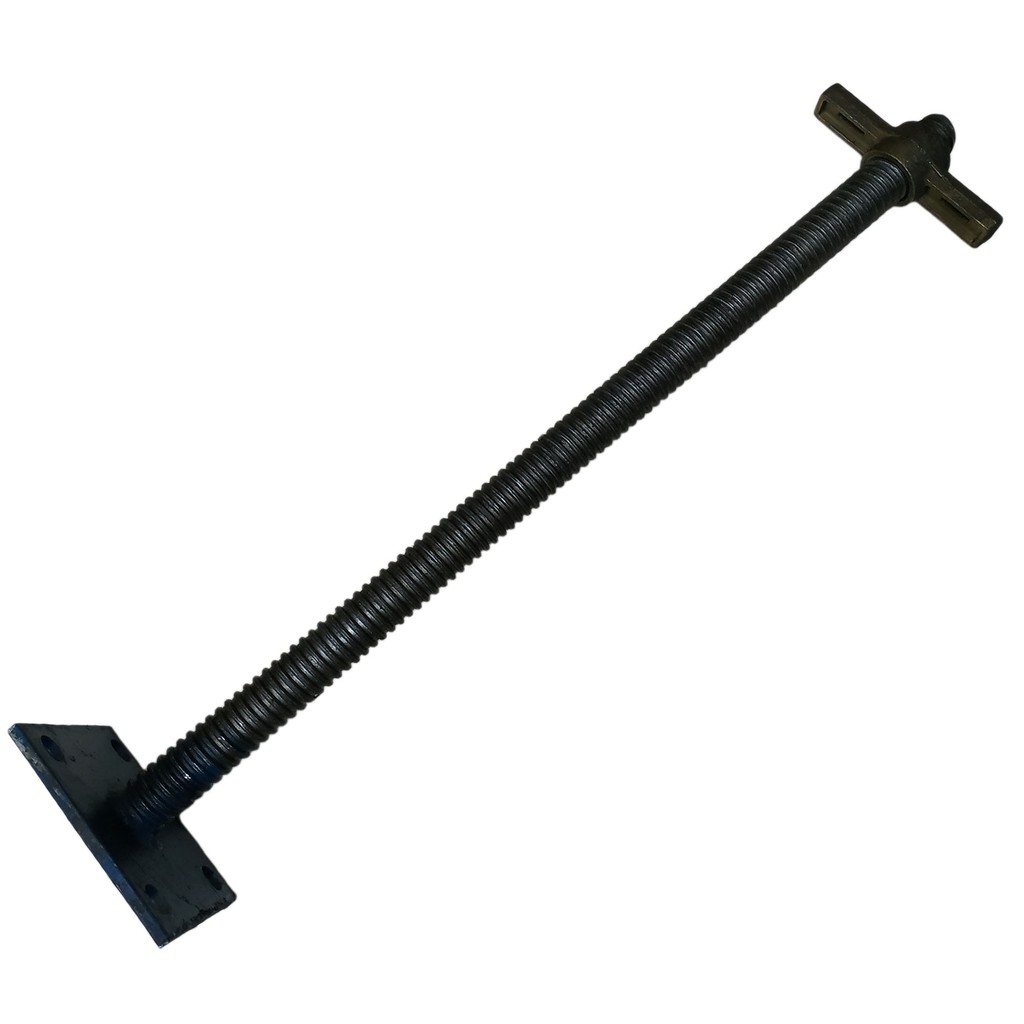

ADJUSTABLE BASE JACKS
COUPLERS / FITTINGS
WOODEN SCAFFOLD BOARDS
LVL SCAFFOLD BOARDS
STEEL PLANKS / WALKWAYS
ALUMINIUM LADDERS
SCAFFOLD TUBES

The following is a listing of the different lengths, thicknesses, dimensions, and finishings of all the different components of the CUPLOCK system that are manufactured by Orient.

Cuplock Standard | 3.20 mm Thick | 3.0 meters Long | Painted
Cuplock Ledger | 3.20 mm Thick | 2.5 meters Long | Painted
Cuplock Intermediate Transom | 3.2 mm Thick | 2.5 meters Long | Painted
Cuplock Standard | 4 mm Thick | 3.0 meters Long | Painted
Cuplock Ledger | 4 mm Thick | 2.5 meters Long | Painted
Cuplock Intermediate Transom | 4 mm Thick | 2.5 meters Long | Painted
Cuplock Standard | 4 mm Thick | 3.0 meters Long | Galvanized
Galvanized Scaffold Tube | 3.20 mm thick | 3 meters long | EN 39
Cuplock Intermediate Transom | 4 mm Thick | 2.5 meters Long | Galvanized
Cuplock Standard | 4 mm Thick | 2.0 meters Long | Galvanized
Cuplock Ledger | 4 mm Thick | 2.5 meters Long | Galvanized
Cuplock Standard | 4 mm Thick | 1.0 meters Long | Painted
Cuplock Standard | 4 mm Thick | 1.0 meters Long | Galvanized
Cuplock Standard | 4 mm Thick | 1.6 meters Long | Painted
Cuplock Standard | 4 mm Thick | 2.3 meters Long | Painted
Cuplock Standard | 4 mm Thick | 1.8 meters Long | Painted
Cuplock Standard | 4 mm Thick | 2.5 meters Long | Painted
M.S Black Tube | 3.20 mm thick | 4 meters long | EN 39
Cuplock Standard | 4 mm Thick | 2.8 meters Long | Painted
Cuplock Standard | 4 mm Thick | 2.0 meters Long | Painted
Cuplock Standard | 3,20 mm Thick | 2.5 meters Long | Painted
Cuplock Standard | 3.20 mm Thick | 1.3 meters Long | Painted
Cuplock Standard | 4 mm Thick | 0.9 meters Long | Galvanized
Cuplock Standard | 3.20 mm Thick | 2.0 meters Long | Painted
Cuplock Ledger | 4 mm Thick | 1.0 meters Long | Galvanized
M.S Black Tube | 3.20 mm thick | 2 meters long | EN 39
Cuplock Intermediate Transom | 3.20 mm Thick | 1.2 meters Long | Painted
Pressed Sleeve Coupler / Joint Box
Cuplock Standard | 3.20 mm Thick | 0.9 meters Long | Painted
Cuplock Intermediate Transom | 3.2 mm Thick | 1.6 meters Long | Painted
Cuplock Standard | 3.20 mm Thick | 1.0 meters Long | Painted
Galvanized Scaffold Tube | 3.20 mm thick | 6 meters long | EN39
Drop Forged Swivel Coupler
Cuplock Ledger | 4 mm Thick | 1.2 meters Long | Galvanized
Cuplock Standard | 3.20 mm Thick | 2.8 meters Long | Painted
Galvanized Scaffold Tube | 3.20 mm thick | 1.5 meters long | EN 10219
Cuplock Intermediate Transom | 3.20 mm Thick | 1.0 meters Long | Painted
Cuplock Intermediate Transom | 3.20 mm Thick | 1.3 meters Long | Painted
Cuplock Standard | 4 mm Thick | 1.3 meters Long | Painted
Galvanized Scaffold Tube | 3.20 mm thick | 0.5 meters long | EN 10219

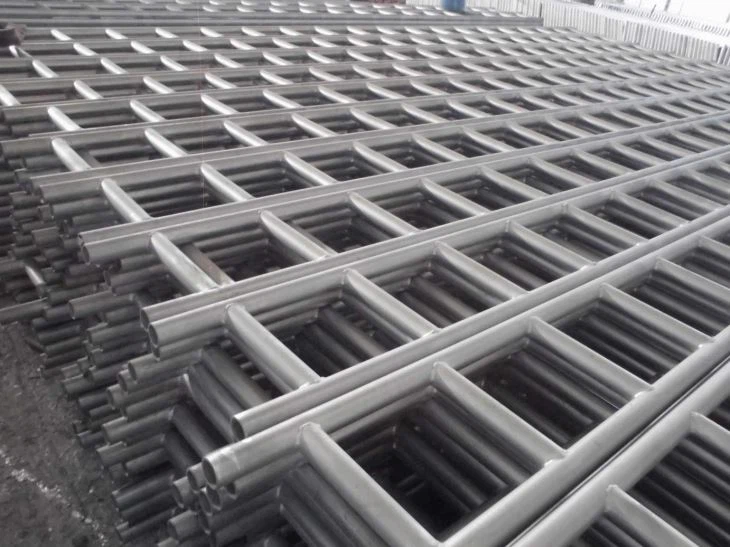

Scaffolding Ladder Beam | 48.3 mm | 4 mm | 6.0 meters | Galvanized
Scaffold Ladder Beam | 48.3 mm | 4 mm | 4.0 meters | Galvanized
Scaffolding Ladder Beam | 48.3 mm | 4 mm | 8.0 meters | Galvanized
Scaffolding Ladder Beam | 48.3 mm | 3.20 mm | 4.0 meters | Galvanized
Cuplock Standard | 4 mm Thick | 1.8 meters Long | Galvanized
Galvanized Scaffold Tube | 3.20 mm thick | 3 meters long | EN10219
Cuplock Intermediate Transom | 4 mm Thick | 0.6 meters Long | Painted
Gravelock Girder Coupler / Beam Coupler
